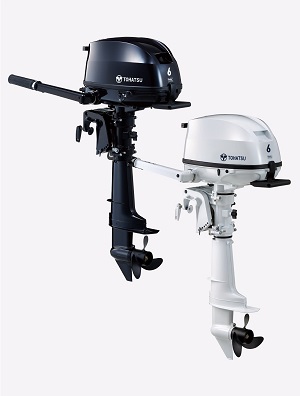

thohatsu MFS6D

Description

SPECIFICATIONS
Engine 4 Stroke 1 Cylinder
Output 6 ps (4.4 kw)
Displacement 123 cc (7.5 cu.in.)
Bore x Stroke 59 x 45 mm (2.32 x 1.77 in)
Max. RPM Range 5,000 – 6,000
Starting Manual
Control Type Tiller Handle
Gear Shift Forward – Neutral – Reverse
Gear Ratio 2.15:1
Propeller Selection Range 6″ – 9″
Transom Height 15″, 20″, 25″
Fuel Unleaded Gasoline (87 Octane)
Oil Type NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ)
Oil Capacity 450 mL (15 fl. oz.)
Fuel Tank Internal Fuel Tank Models (MFS6DD) : 1.1L (0.29 US Gal.) Integral Tank (Includes an External Fuel Tank Connector installed on engine to allow user to use an optional external fuel tank)

External Fuel Tank Models (MFS6DS) : 12L (3.1 US Gal.) Separate Fuel Tank
Weight* 25 kg (55 lbs.)
Alternator Output Optional: 12V, 60W, 5A
Digital CD Ignition System Standard
Start In Gear Protection Standard
Thermostat Controlled Cooling System Standard
Through-The-Prop Exhaust Standard
Oil Pressure Warning Standard
Shallow Water Drive Standard
